TAG | Extreme Recovery Towbar & Wiring Kit | LDV T60 T60 Max Styleside 2024–ON | TXR868-K202

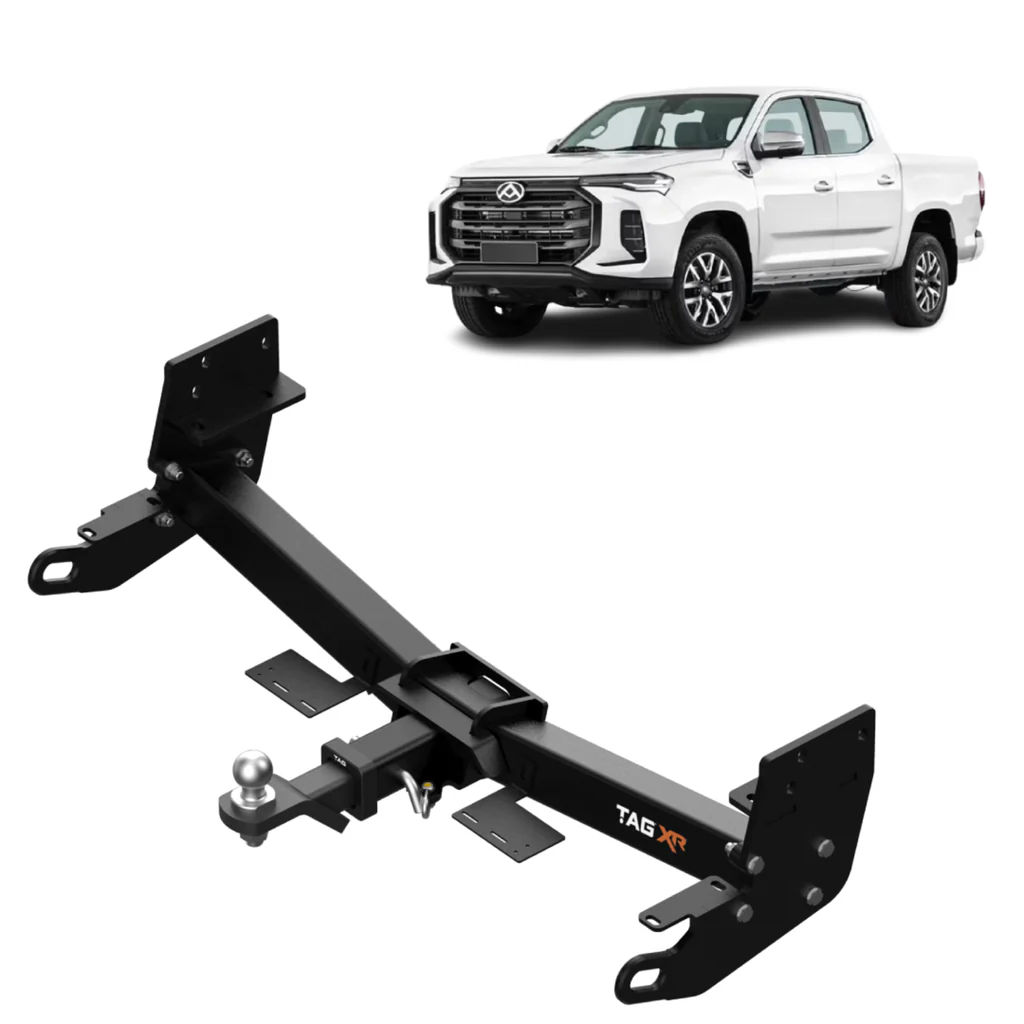

TAG Extreme Recovery Towbar and Wiring Kit for LDV T60 & T60 Max Styleside Tub (03/2024 - On)

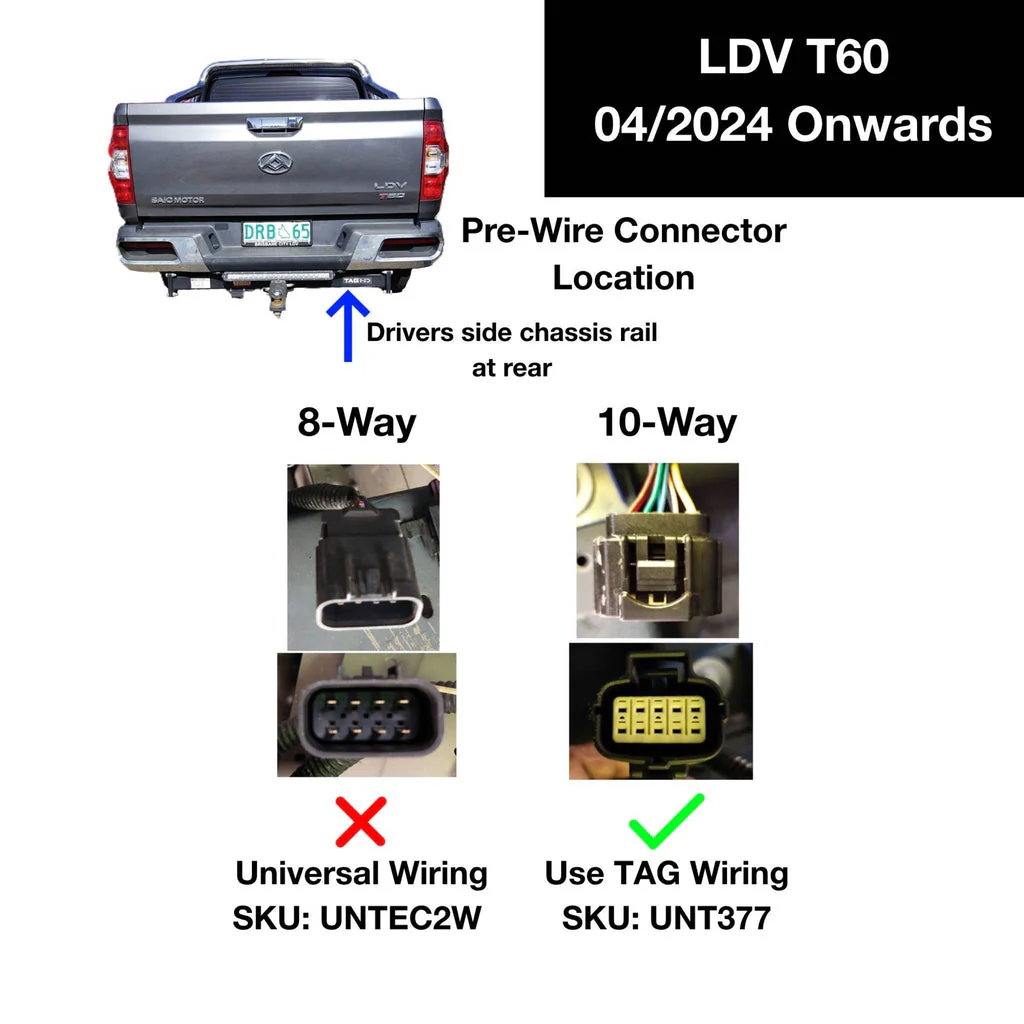

This TAG Extreme Recovery (XR) Towbar and Direct Fit Wiring Kit (TXR868-K202) is built in Australia specifically for LDV T60 & T60 Max Styleside Tub models (with rear step only) from 03/2024 onwards. The XR Towbar is engineered for challenging offroad and professional applications, featuring an Extreme Duty Reinforced Crossbar and two WLL 4000kg load-rated recovery points integrated into the 3-Piece Design. These recovery points have bevelled edges suitable for soft-shackles. The towbar provides a flush chassis-mounted profile for maximum offroad clearance and improved departure angles. It is a Class 4 towbar with a 50mm square hitch receiver, rated at 3500kg towing capacity and 350kg ball weight. The kit includes the Direct Fit ECU Wiring Harness (UNT377) and a 7 Pin Flat Socket. Please note: The wiring component (UNT377) is designed for 04/2024+ models with the 10-way pre-wire connector only; universal wiring is required for models with the 8-way connector.
Product Features & Specifications:
- Towbar Class: Heavy Duty Class 4 (4x4 Recovery)
- Towbar Capacity: 3500 kg
- Ball Weight: 350 kg
- Recovery Points: Two integrated WLL 4000kg Load-Tested Recovery Points
- Hitch Type: 50mm Square Hitch Receiver
- Wiring Type: Direct Fit ECU Wiring Harness (UNT377) with 7 Pin Flat Socket (Included)
- Features: Extreme Duty Reinforced Crossbar, Dual Top-Mounted Trailer & Anderson Plug Mounts, LED Support
- Installation Notes: Bumper removal required, no bumper cut-out required. Partially concealed exposure.
- Coating: Textured Powder Coated Finish
- Warranty: TAG Limited Lifetime Warranty
Inclusions:
- TAG 4x4 Recovery Towbar (TXR868)
- TAG Direct Fit Wiring Harness (UNT377)
- TAG 7 Pin Flat Socket - Vehicle Side
- Zinc Tow Ball, Extreme Duty Drop Hitch (L4045TXR), Hitch Pin & R-Clip and D-Shackles
Important Information
- The image shown may not reflect the actual product
- Shipping times may vary depending on destination and stock availability
Vehicle Applications (LDV T60 & T60 MAX)
| Make | Model (Series) | Year Range | Body | Engine | Drivetrain | Trim Level |
|---|---|---|---|---|---|---|
| LDV | T60 (SK8C) | 07/2022 - | Ute | 0.0L Electric | RWD | . |
| LDV | T60 (SK8C) | 09/2021 - | Ute | 2.0L Diesel (SC20M218Q5) | AWD | . |
| LDV | T60 (SK8C) | 09/2021 - | Ute | 2.0L Diesel (SC20M218Q5) | RWD | . |
| LDV | T60 (SK8C) | 01/2020 - | Ute | 2.0L Diesel (SC20M163Q5) | AWD | . |
| LDV | T60 (SK8C) | 01/2020 - | Ute | 2.0L Diesel (SC20M163Q5) | RWD | . |
| LDV | T60 | 01/2020 - | Ute | 2.0L Diesel (D20) | Automatic/Manual 4WD | TRAILRIDER 2 |
| LDV | T60 | 10/2017 - | Ute | 2.8L Diesel (SC28R150Q5) | Automatic/Manual 4WD | LUXE, PRO, TRAILRIDER |
| LDV | T60 | 10/2017 - | Ute | 2.8L Diesel (SC28R150Q5) | 4WD | Pro, Luxe |
| LDV | T60 (SK8C) | 07/2017 - | Ute | 2.8L Diesel (SC28R150Q5) | RWD | . |
| LDV | T60 (SK8C) | 07/2017 - 08/2021 | Ute | 2.8L Diesel (SC28R150Q5) | AWD | . |
