TAG | Std Duty TLP Towbar & Direct Fit Wiring Kit | Toyota Hiace Commuter Bus 2004–2019 | T9T008-K201
TAG Standard Duty TLP Towbar and Direct Fit Wiring + Solution for your Toyota Hiace Commuter Bus
The TAG Standard Duty Tail Light Protector (TLP) Towbar and Direct Fit Wiring Kit (T9T008-K201) offers a maximum 1250kg towing capacity solution with integrated tail light protection for the Toyota Hiace Commuter Bus (08/2004 - 01/2019). This complete kit includes the Standard Duty Towbar and a Direct Fit Wiring Harness with a 7 Pin Flat Socket.
TAG Light Duty Towbars are designed and manufactured in Australia and feature:
Kit Includes:
- TAG Standard Duty Tail Light Protector Towbar (T9T008)
- TAG Direct Fit Wiring Harness (UNT250)

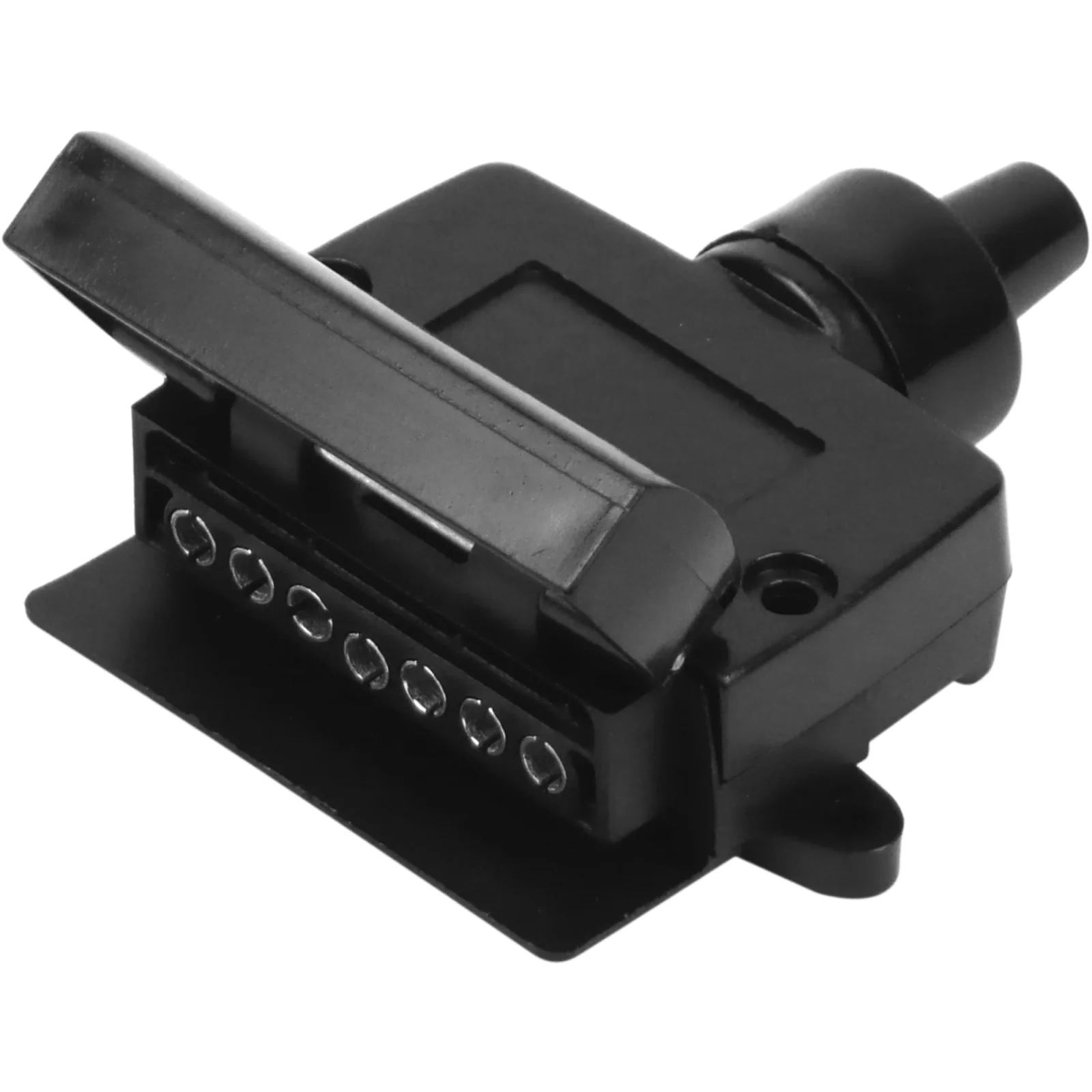

- TAG 7 Pin Flat Socket - Vehicle Side
Towbar Features:
- Factory Mounting Points for ease of fitment
- Durable Powder-Coated Finish
- Flat Fixed 2-Bolt Tow Ball Mount
- Includes Tow Ball, Tow Ball Mount (L237), Pin & Clip and D-Shackles
- TAG Limited Lifetime Warranty
Please Note: A towbar is a safety critical item and not always a straightforward fitment due to vehicle manufacturing variation. We strongly recommend you get your towbar and wiring harness installed by a professional towbar or vehicle accessory fitting workshop.
Specifications:
- Towbar Class: Standard Duty (Tail Light Protector - TLP)
- Towbar Capacity [kg]: 1250
- Ball Weight [kg]: 100
- Hitch Type: Flat Fixed 2 Bolt
- Tow Ball Mount: L237
- Coating: Enamel Immersion Dipped / Powder-Coated Finish
- Exposure: Exposed
- Bumper Removed During Fitment: No
- Bumper Cut Out Required: No
- Combined Fitting Time [min.]: ~165 (Towbar 120 + Wiring 45)
Wiring Specifics:
- Wiring Option: Direct Fit Wiring Harness (UNT250)
- Plug Connection: 7 Pin Flat Socket
- Diagnostic Coding: Not Required
- Fog Cut Off: Not Applicable
- Reverse Sensor Cut Off: Not Applicable
Important Information
- The image shown may not reflect the actual product
- Shipping times may vary depending on destination and stock availability
Vehicle Applications for Toyota Hiace / Commuter (08/2004 - 01/2019)
| Make | Model | From | To | Body | Series | Engine | Variant | Drivetrain |
|---|---|---|---|---|---|---|---|---|
| Toyota Hiace / Commuter (08/2004 - 01/2019) | ||||||||
| TOYOTA | HIACE / COMMUTER | 08/2004 | 01/2019 | Bus | GDH2__, KDH2__, LH2__, TRH2__ | 2TR-FE | 2.7L | Petrol | AWD | |
| TOYOTA | HIACE / COMMUTER | 08/2004 | 01/2019 | Bus | TRH200 | 1TR-FE | 2.0L | Petrol | RWD | |
| TOYOTA | HIACE / COMMUTER | 08/2004 | 01/2019 | Bus | TRH223 | 2TR-FE | 2.7L | Petrol | RWD | |
| TOYOTA | HIACE / COMMUTER | 08/2004 | 01/2019 | Bus | KDH203R, KDH221, KDH223 | 1KD-FTV | 3.0L | Diesel | D | RWD |
| TOYOTA | HIACE / COMMUTER | 08/2004 | 01/2019 | Bus | KDH203R, KDH221, KDH223 | 1KD-FTV | 3.0L | Diesel | D | RWD |
| TOYOTA | HIACE / COMMUTER | 08/2004 | 01/2019 | Bus | TRH223 | 2TR-FE | 2.7L | Petrol | RWD | |
| TOYOTA | HIACE / COMMUTER | 08/2004 | 01/2019 | Bus | TRH223 | 2TR-FE | 2.7L | Petrol | RWD | |
| TOYOTA | HIACE / COMMUTER | 08/2004 | 01/2019 | Bus | KDH223 | 1KD-FTV | 3.0L | Diesel | D | RWD |
| TOYOTA | HIACE / COMMUTER | 08/2004 | 01/2019 | Bus | KDH223 | 1KD-FTV | 3.0L | Diesel | D | RWD |
| Toyota Hiace (08/2004 - 01/2019) | ||||||||
| TOYOTA | HIACE | 08/2004 | 01/2019 | Van | TRH200 | 1TR-FE | 2.0L | Petrol | RWD | |
| TOYOTA | HIACE | 08/2004 | 01/2019 | Van | KDH206R | 1KDFTV | 3.0L | Diesel | DX | Automatic/Manual 4WD |
| TOYOTA | HIACE | 08/2004 | 01/2019 | Van | TRH200R | 1TRFE | 2.0L | Petrol | DX, LONG, ROUTE, SUPER GL | Automatic/Manual RWD |
| TOYOTA | HIACE | 08/2004 | 01/2019 | Van | TRH201R | 2TRFE | 2.7L | Petrol | LWB | Automatic/Manual RWD |
| TOYOTA | HIACE | 08/2004 | 01/2019 | Van | TRH221R | 2TRFE | 2.7L | Petrol | SLWB | Automatic/Manual RWD |
| TOYOTA | HIACE | 08/2004 | 01/2019 | Van | TRH223 | 2TR-FE | 2.7L | Petrol | RWD | |
| TOYOTA | HIACE | 08/2004 | 01/2019 | Van | KDH201, KDH221 | 1KD-FTV | 3.0L | Diesel | D | RWD |
| TOYOTA | HIACE | 08/2004 | 01/2019 | Van | KDH201, KDH221 | 1KD-FTV | 3.0L | Diesel | D | RWD |
| TOYOTA | HIACE | 08/2004 | 01/2019 | Van | GDH2__, KDH2__, LH2__, TRH2__ | 1KD-FTV | 3.0L | Diesel | D | AWD |
| TOYOTA | HIACE | 08/2004 | 01/2019 | Bus | KDH223R | 1KDFTV | 3.0L | Diesel | COMMUTER BUS | Automatic/Manual RWD |
| TOYOTA | HIACE | 08/2004 | 01/2019 | Van | KDH201, KDH221 | 1KD-FTV | 3.0L | Diesel | D | RWD |
| TOYOTA | HIACE | 08/2004 | 01/2019 | Van | KDH201, KDH221 | 1KD-FTV | 3.0L | Diesel | D | RWD |
| TOYOTA | HIACE | 08/2004 | 01/2019 | Van | KDH201R | 1KDFTV | 3.0L | Diesel | LWB | Automatic/Manual RWD |
| TOYOTA | HIACE | 08/2004 | 01/2019 | Van | KDH221R | 1KDFTV | 3.0L | Diesel | SLWB | Automatic/Manual RWD |
| TOYOTA | HIACE | 08/2004 | 01/2019 | Bus | TRH213, TRH214, TRH224 | 2TR-FE | 2.7L | Petrol | RWD | |
| TOYOTA | HIACE | 08/2004 | 01/2019 | Van | KDH200, KDH223 | 1KD-FTV | 3.0L | Diesel | D | RWD |
| TOYOTA | HIACE | 08/2004 | 01/2019 | Van | TRH200 | 1TR-FE | 2.0L | Petrol | RWD | |
| TOYOTA | HIACE | 08/2004 | 01/2019 | Bus | TRH223R | 2TRFE | 2.7L | Petrol | COMMUTER BUS | Automatic/Manual RWD |
| TOYOTA | HIACE | 08/2004 | 01/2019 | Van | TRH201R | 2TRFE | 2.7L | Petrol | LWB | Automatic/Manual RWD |
| TOYOTA | HIACE | 08/2004 | 01/2019 | Van | TRH221R | 2TRFE | 2.7L | Petrol | SLWB | Automatic/Manual RWD |
| TOYOTA | HIACE | 08/2004 | 01/2019 | Van | TRH201, TRH221, TRH223B | 2TR-FE | 2.7L | Petrol | VVTi | RWD |
| TOYOTA | HIACE | 08/2004 | 01/2019 | Van | TRH201, TRH221, TRH223B | 2TR-FE | 2.7L | Petrol | VVTi | RWD |
| TOYOTA | HIACE | 08/2004 | 01/2019 | Bus | TRH228B, TRH229 | 2TR-FE | 2.7L | Petrol | AWD | |
| TOYOTA | HIACE | 08/2004 | 01/2019 | Van | KDH200, KDH220 | 2KD-FTV | 2.5L | Diesel | D-4D | RWD |
| TOYOTA | HIACE | 08/2004 | 01/2019 | Van | KDH200, KDH220 | 2KD-FTV | 2.5L | Diesel | D-4D | RWD |
| TOYOTA | HIACE | 08/2004 | 01/2019 | Van | KDH225, KDH205 | 2KD-FTV | 2.5L | Diesel | AWD | |
| TOYOTA | HIACE | 08/2004 | 01/2019 | Van | KDH200R | 2KDFTV | 2.5L | Diesel | DX, LONG, ROUTE, SUPER GL | Automatic/Manual RWD |
| TOYOTA | HIACE | 08/2004 | 01/2019 | Bus | KDH222R | 2KDFTV | 2.5L | Diesel | COMMUTER BUS | Automatic/Manual RWD |
| TOYOTA | HIACE | 08/2004 | 01/2019 | Van | KDH200R | 2KDFTV | 2.5L | Diesel | LWB | Automatic/Manual RWD |
| TOYOTA | HIACE | 08/2004 | 01/2019 | Van | KDH220R | 2KDFTV | 2.5L | Diesel | SLWB | Automatic/Manual RWD |
| TOYOTA | HIACE | 08/2004 | 01/2019 | Bus | TRH213, TRH214, TRH224 | 2TR-FE | 2.7L | Petrol | RWD | |
| TOYOTA | HIACE | 08/2004 | 01/2019 | Van | KDH200, KDH223 | 1KD-FTV | 3.0L | Diesel | D | RWD |
| TOYOTA | HIACE | 08/2004 | 01/2019 | Van | TRH200 | 1TR-FE | 2.0L | Petrol | RWD | |
| TOYOTA | HIACE | 08/2004 | 01/2019 | Bus | TRH223R | 2TRFE | 2.7L | Petrol | COMMUTER BUS | Automatic/Manual RWD |
| TOYOTA | HIACE | 08/2004 | 01/2019 | Van | TRH201R | 2TRFE | 2.7L | Petrol | LWB | Automatic/Manual RWD |
| TOYOTA | HIACE | 08/2004 | 01/2019 | Van | TRH221R | 2TRFE | 2.7L | Petrol | SLWB | Automatic/Manual RWD |
| TOYOTA | HIACE | 08/2004 | 01/2019 | Van | TRH201, TRH221, TRH223B | 2TR-FE | 2.7L | Petrol | VVTi | RWD |
| TOYOTA | HIACE | 08/2004 | 01/2019 | Van | TRH201, TRH221, TRH223B | 2TR-FE | 2.7L | Petrol | VVTi | RWD |
| TOYOTA | HIACE | 08/2004 | 01/2019 | Bus | TRH228B, TRH229 | 2TR-FE | 2.7L | Petrol | AWD | |
| TOYOTA | HIACE | 08/2004 | 01/2019 | Van | KDH200, KDH220 | 2KD-FTV | 2.5L | Diesel | D-4D | RWD |
| TOYOTA | HIACE | 08/2004 | 01/2019 | Van | KDH200, KDH220 | 2KD-FTV | 2.5L | Diesel | D-4D | RWD |
| TOYOTA | HIACE | 08/2004 | 01/2019 | Van | KDH225, KDH205 | 2KD-FTV | 2.5L | Diesel | AWD | |
| TOYOTA | HIACE | 08/2004 | 01/2019 | Van | KDH200R | 2KDFTV | 2.5L | Diesel | DX, LONG, ROUTE, SUPER GL | Automatic/Manual RWD |
| TOYOTA | HIACE | 08/2004 | 01/2019 | Bus | KDH222R | 2KDFTV | 2.5L | Diesel | COMMUTER BUS | Automatic/Manual RWD |
| TOYOTA | HIACE | 08/2004 | 01/2019 | Van | KDH200R | 2KDFTV | 2.5L | Diesel | LWB | Automatic/Manual RWD |
| TOYOTA | HIACE | 08/2004 | 01/2019 | Van | KDH220R | 2KDFTV | 2.5L | Diesel | SLWB | Automatic/Manual RWD |
| TOYOTA | HIACE | 08/2004 | 01/2019 | Van | KDH200 | 2KD-FTV | 2.5L | Diesel | D-4D | RWD |
