TAG | Standard Duty Towbar & Direct Fit Wiring Harness | Hyundai ix35 LM SUV 2010–2015 | T2Z533-K201
TAG Standard Duty Towbar and Direct Fit Wiring Harness (T2Z533-K201)
This TAG Standard Duty Towbar and Direct Fit Wiring Harness Kit (T2Z533-K201) provides a towing capacity of 1600kg and is designed for the Hyundai IX35 (01/2010 - 12/2015). The towbar is concealed when fitted and requires bumper removal and a bumper cut out during fitment.
This Kit Includes:

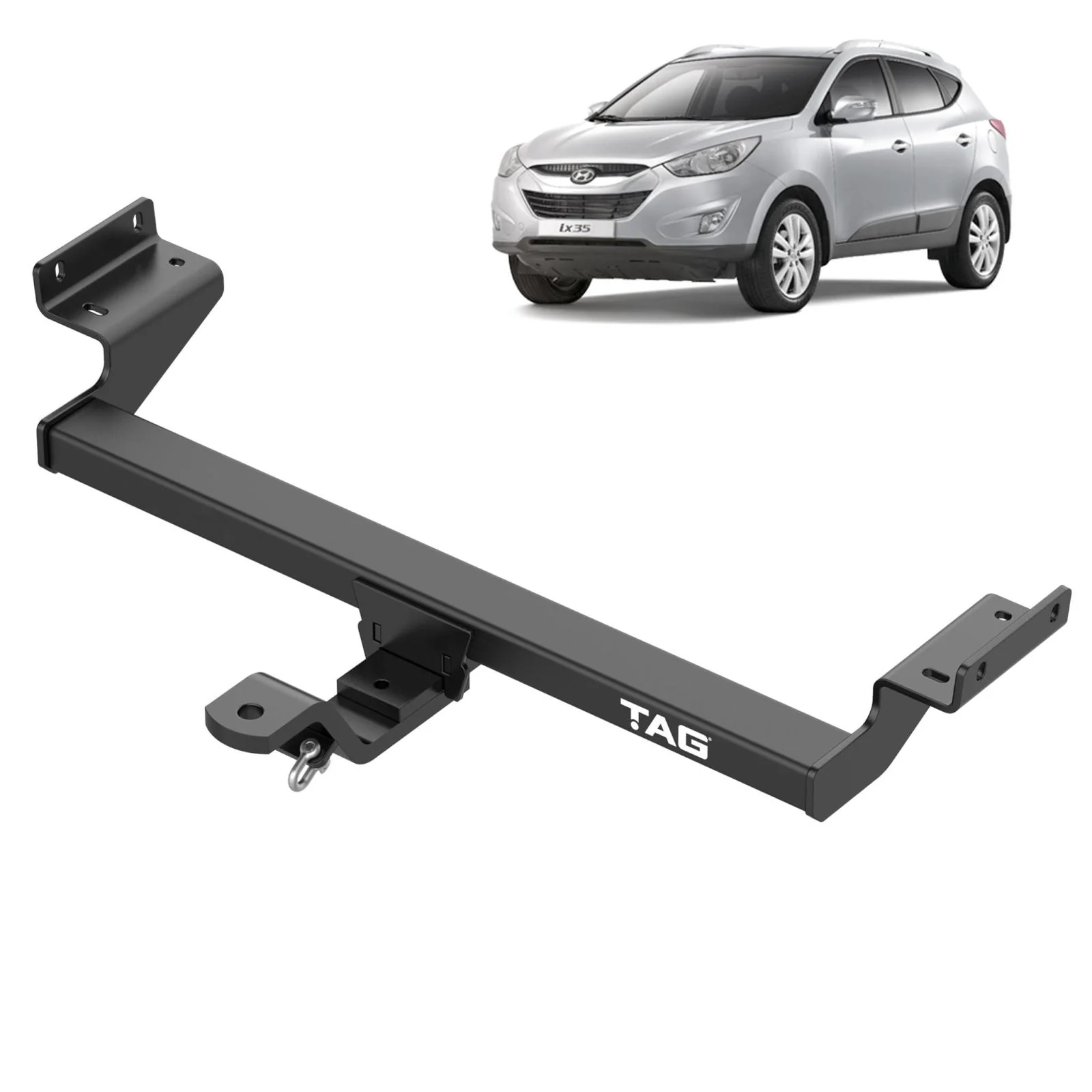

- TAG Standard Duty Towbar

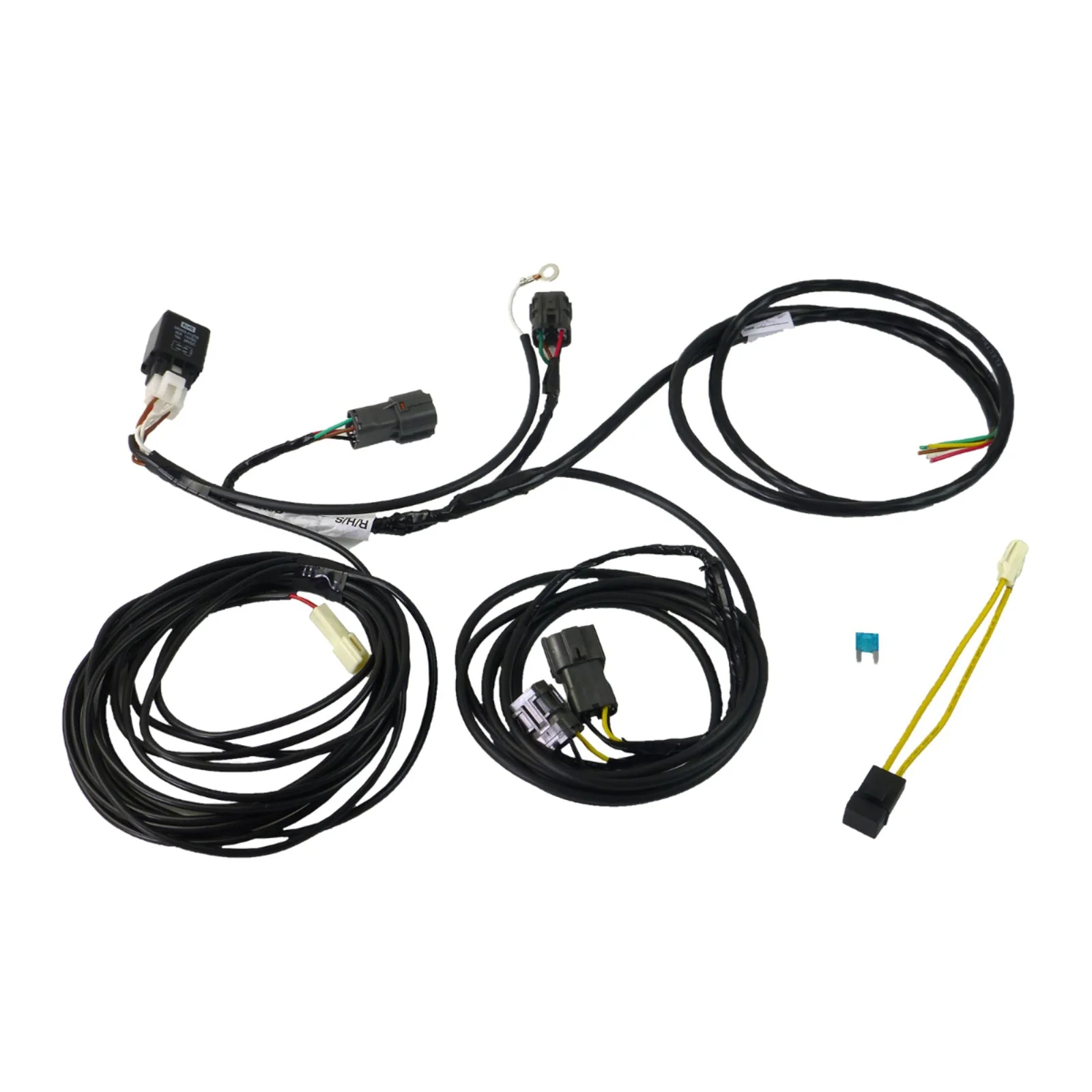

- TAG Direct Fit Wiring Harness

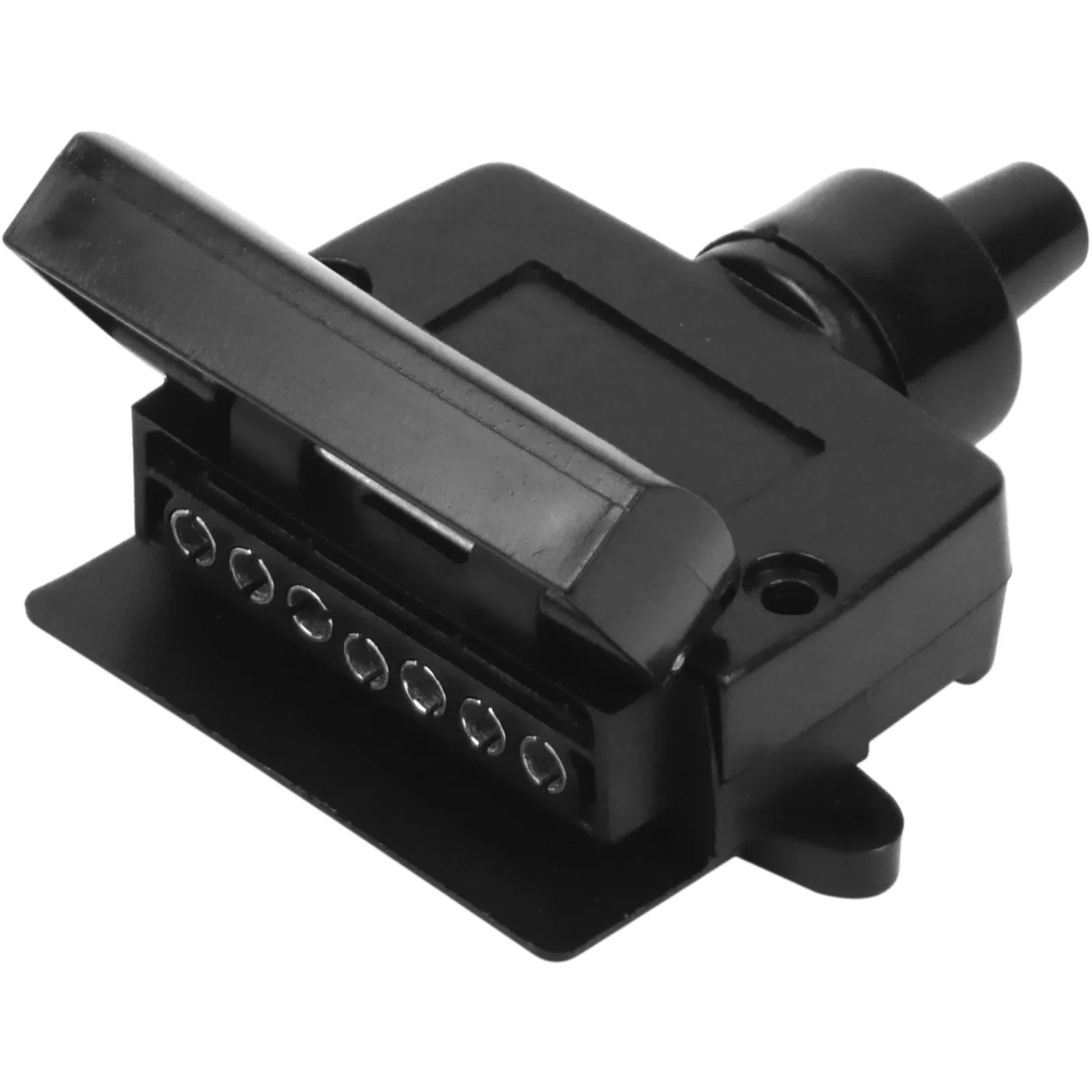

- TAG 7 Pin Flat Socket - Vehicle Side
TAG Standard Duty Towbars are designed and manufactured in Australia and feature:
- Factory Mounting Points for ease of fitment
- Durable Powder Coated Finish
- Flat Fixed 2-Bolt Tow Ball Mount
- TAG Limited Lifetime Warranty
- Towbar includes Tow Ball
Please Note: A towbar is a safety critical item and not always a straightforward fitment due to vehicle manufacturing variation. We strongly recommend you get your towbar and wiring harness installed by a professional towbar or vehicle accessory fitting workshop.
Specifications:
- Style: 7 Pin Flat
- Type: Plugs & Sockets
- Reverse Sensor Cut Off: Not Applicable
- Diagnostic Coding: Not Required
- Fog Cut Off: Not Applicable
- Wiring Option: Direct Fit Wiring Harness
- Fitting Time [min.]: 60
- Exposure: Concealed
- Coating: Enamel Immersion Dipped
- Bumper Cut Out Required: Yes
- Tow Ball Mount: L269C
- Bumper Removed During Fitment: Yes
- Towbar Capacity [kg]: 1600
- Towbar Class: Standard Duty
- Hitch Type: Flat Fixed 2 Bolt
- Ball Weight [kg]: 160
Important Information
- The image shown may not reflect the actual product
- Shipping times may vary depending on destination and stock availability
Vehicle Applications (Full Details)
| Make | Model | Year Start - Year End | Body Type | Engine Details | Drivetrain | Trim Level |
|---|---|---|---|---|---|---|
| HYUNDAI | ix35 | 08/2013 - 04/2015 | Wagon | G4NC | 2.0L | Petrol | FWD | GDi |
| HYUNDAI | ix35 | 01/2013 - 04/2015 | Wagon | G4KJ | 2.4L | Petrol | AWD | GDi |
| HYUNDAI | ix35 | 10/2012 - 06/2015 | SUV | D4HA | 2.0L | Diesel | FWD | CRDi |
| HYUNDAI | ix35 | 01/2010 - 10/2015 | Wagon | G4KE | 2.4L | Petrol | AWD | [N/A] |
| HYUNDAI | ix35 | 01/2010 - 10/2015 | Wagon | G4KD | 2.0L | Petrol | FWD | [N/A] |
| HYUNDAI | ix35 | 01/2010 - 10/2015 | Wagon | G4KD | 2.0L | Petrol | FWD | [N/A] |
| HYUNDAI | ix35 | 01/2010 - 10/2015 | Wagon | D4HA | 2.0L | Diesel | AWD | CRDi |
| HYUNDAI | iX35 | 10/2013 - 12/2015 | Wagon | G4NC | 2.0L | Petrol | Automatic/Manual FWD | ACTIVE| TROPHY |
| HYUNDAI | iX35 | 10/2013 - 12/2015 | Wagon | G4NC | 2.0L | Petrol | Automatic FWD | ELITE |
| HYUNDAI | iX35 | 10/2013 - 12/2015 | Wagon | G4KJ | 2.4L | Petrol | Automatic AWD | ELITE| HIGHLANDER |
| HYUNDAI | iX35 | 10/2013 - 12/2015 | Wagon | G4NC | 2.0L | Petrol | Automatic/Manual FWD | SE |
| HYUNDAI | iX35 | 10/2013 - 12/2015 | Wagon | G4NC | 2.0L | Petrol | Automatic/Manual FWD | SE |
| HYUNDAI | iX35 | 03/2013 - 06/2015 | Wagon | D4HA | 2.0L | Diesel | Automatic AWD | SE |
| HYUNDAI | iX35 | 01/2013 - 12/2015 | Wagon | G4KD | 2.0L | Petrol | Automatic FWD | ELITE |
| HYUNDAI | iX35 | 02/2010 - 06/2015 | Wagon | D4HA | 2.0L | Diesel | Automatic/Manual AWD | ELITE, HIGHLANDER, TROPHY |
| HYUNDAI | iX35 | 01/2010 - 10/2015 | Wagon | D4HA | 2.0L | Diesel | AWD | CRDi |
| HYUNDAI | iX35 | 06/2012 - 09/2013 | Wagon | G4KD | 2.0L | Petrol | Automatic FWD | ELITE |
| HYUNDAI | iX35 | 02/2010 - 09/2013 | Wagon | G4KD | 2.0L | Petrol | Automatic/Manual FWD | ACTIVE |
| HYUNDAI | iX35 | 02/2010 - 09/2013 | Wagon | G4KG | 2.4L | Petrol | Automatic/Manual AWD | ELITE| HIGHLANDER |
