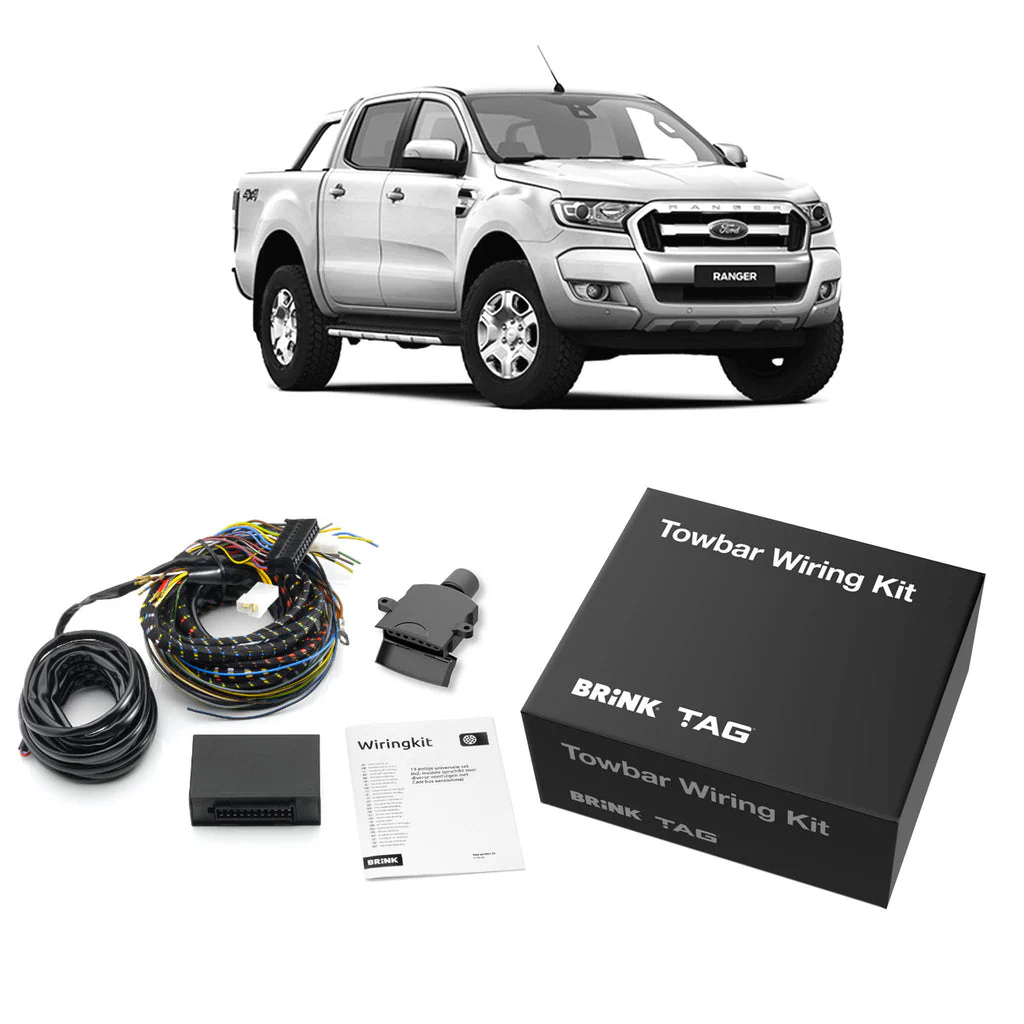

BRINK | Direct Fit Wiring Harness | Ford Ranger PX1 2014–2015 | BR-712205
Brink Direct Fit Wiring Harness Solution for your Ford Ranger PX1 Series
The TAG Towbar Wiring Kit, developed in partnership with Brink® Towbars, offers a specialized electrical solution for the Ford Ranger PX1 (models between 03/2014 - 07/2015). Specifically designed for vehicles equipped with the Black CAN Connector, this CAN-Bus harness ensures a safe and seamless integration with your vehicle's modern safety features. Bench-tested to ADR standards, it provides reliable power to your trailer or caravan lights without risking damage to the Ford Mondeo's sophisticated electronics.
Main Features:
- Vehicle Specific: Tailored for Ford Ranger PX1 models within the 2014-2015 date range with the Black CAN Connector.
- Safety System Compatible: Fully integrates with Trailer Stability Programming (TSP), Lane Collision Avoidance, and Park Distance Controls (PDC).
- Plug-n-Play Ease: No soldering or specialized tools required for a clean, professional installation.
- ADR Compliant: Bench tested and rated to current ADR standards for road safety and insurance peace of mind.

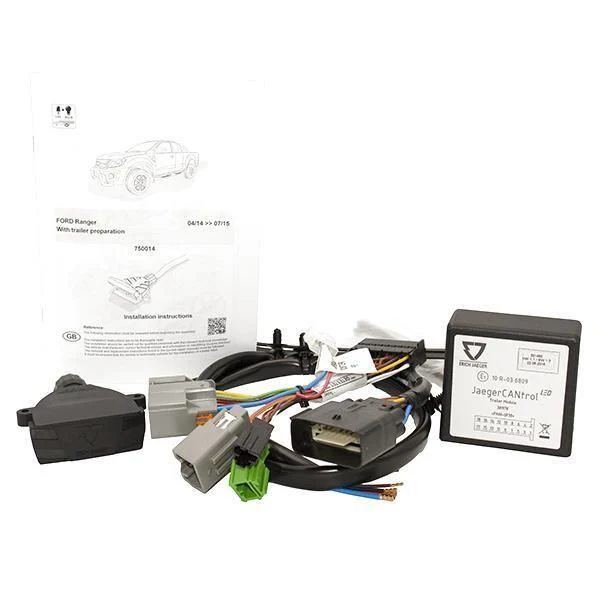

- Complete Solution: Includes high-quality ECU module, 7-Pin Flat Socket, harness, and comprehensive connection guide.
Specifications:
- Part Number: BR-712205
- Wiring Option: Direct Fit CAN-Bus Harness (Suits Black CAN Connector)
- Plug Connection: 7 Pin Flat Socket
- Fitting Time: Approx. 60 Minutes
- Diagnostic Coding: Optional
- Fog Cut Off: Automatic
- Reverse Sensor Cut Off: Not Applicable
Important Information
- The image shown may not reflect the actual product
- Shipping times may vary depending on destination and stock availability
Vehicle Applications
| Make | Model | From | To | Body | Series | Engine | Variant | Drivetrain |
|---|---|---|---|---|---|---|---|---|
| FORD | RANGER | 03/2014 | 06/2015 | Cab Chassis | PX (PX, PXII, PXIII) | P5-AT | 3.2L | Diesel | TDdi | 4WD |
| FORD | RANGER | 03/2014 | 06/2015 | Ute | PX (PX, PXII, PXIII) | P5-AT | 3.2L | Diesel | TDdi | 4WD |
| FORD | RANGER | 03/2014 | 06/2015 | Ute | PX (PX, PXII, PXIII) | P5-AT | 3.2L | Diesel | TDdi | RWD |
| FORD | RANGER | 03/2014 | 06/2015 | Cab Chassis | PX (PX1, PX2, PX3) | P5AT | 3.2L | Diesel | SUPER CAB XL | Automatic/Manual 4WD |
| FORD | RANGER | 03/2014 | 06/2015 | Cab Chassis | PX (PX1, PX2, PX3) | P5AT | 3.2L | Diesel | XL, XL PLUS | Manual 4WD |
| FORD | RANGER | 03/2014 | 06/2015 | Ute | PX (PX1, PX2, PX3) | P5AT | 3.2L | Diesel | SUPER CAB XL, XLT | Automatic/Manual 4WD |
| FORD | RANGER | 03/2014 | 06/2015 | Cab Chassis | PX1 | P5AT | 3.2L | Diesel | XL | Automatic/Manual 4WD |
| FORD | RANGER | 03/2014 | 06/2015 | Ute | PX1 | P5AT | 3.2L | Diesel | XLT HI-RIDER | Automatic/Manual RWD |
| FORD | RANGER | 03/2014 | 06/2015 | Ute | PX1 | P5AT | 3.2L | Diesel | XL| XLT| XLS| WILDTRACK | Automatic/Manual 4WD |
| FORD | RANGER | 03/2014 | 06/2015 | Cab Chassis | PX1 | P5AT | 3.2L | Diesel | XL PLUS | Automatic 4WD |
| FORD | RANGER | 03/2014 | 06/2015 | Cab Chassis | PX1 | P5AT | 3.2L | Diesel | XL PLUS | Automatic 4WD |
| FORD | RANGER | 03/2014 | 06/2015 | Ute | PX1 | P5AT | 3.2L | Diesel | XL PLUS | Automatic 4WD |
| FORD | RANGER | 03/2014 | 06/2015 | Cab Chassis | PX1 | P5AT | 3.2L | Diesel | SUPER CAB XL | Manual 4WD |
| FORD | RANGER | 03/2014 | 06/2015 | Cab Chassis | PX | P5AT | 3.2L | Diesel | SUPER CAB XL | Manual 4WD |
| FORD | RANGER | 03/2014 | 06/2015 | Cab Chassis | PX | P4-AT | 2.2L | Diesel | TDdi | 4WD |
| FORD | RANGER | 03/2014 | 06/2015 | Cab Chassis | PX | P4-AT | 2.2L | Diesel | TDdi | RWD |
| FORD | RANGER | 03/2014 | 06/2015 | Cab Chassis | PX | P4AT | 2.2L | Diesel | XL HIGHRIDER | RWD |
| FORD | RANGER | 03/2014 | 06/2015 | Ute | PX | P4-AT | 2.2L | Diesel | TDdi | 4WD |
| FORD | RANGER | 03/2014 | 06/2015 | Ute | PX | P4-AT | 2.2L | Diesel | TDdi | RWD |
| FORD | RANGER | 03/2014 | 06/2015 | Cab Chassis | PX1 | P4AT | 2.2L | Diesel | SUPER CAB XL HIRIDER | Manual RWD |
| FORD | RANGER | 03/2014 | 06/2015 | Cab Chassis | PX1 | P4AT | 2.2L | Diesel | XL | Manual 4WD |
| FORD | RANGER | 03/2014 | 06/2015 | Cab Chassis | PX1 | P4AT | 2.2L | Diesel | XL | Manual RWD |
| FORD | RANGER | 03/2014 | 06/2015 | Cab Chassis | PX1 | P4AT | 2.2L | Diesel | XLT HI-RIDER | Automatic/Manual RWD |
| FORD | RANGER | 03/2014 | 06/2015 | Ute | PX1 | P4AT | 2.2L | Diesel | XL | Manual RWD |
| FORD | RANGER | 03/2014 | 06/2015 | Ute | PX1 | P4AT | 2.2L | Diesel | XL | Manual RWD |
| FORD | RANGER | 03/2014 | 06/2015 | Ute | PX1 | P4AT | 2.2L | Diesel | XL, XLS | Manual 4WD |
| FORD | RANGER | 03/2014 | 06/2015 | Cab Chassis | PX1 | P4AT | 2.2L | Diesel | XL | Manual 4WD |
| FORD | RANGER | 03/2014 | 06/2015 | Cab Chassis | PX1 | DPAT | 2.5L | Petrol | XL | Manual RWD |
| FORD | RANGER | 03/2014 | 06/2015 | Cab Chassis | PX1 | DPAT | 2.5L | Petrol | XL | Manual RWD |
| FORD | RANGER | 03/2014 | 06/2015 | Cab Chassis | PX1 | P4AT | 2.2L | Diesel | XL | Manual RWD |
| FORD | RANGER | 03/2014 | 06/2015 | Ute | PX1 | P5AT | 3.2L | Diesel | XLT HI-RIDER | Manual RWD |
| FORD | RANGER | 03/2014 | 06/2015 | Ute | PX1 | P5AT | 3.2L | Diesel | XL| XLT | Manual 4WD |
